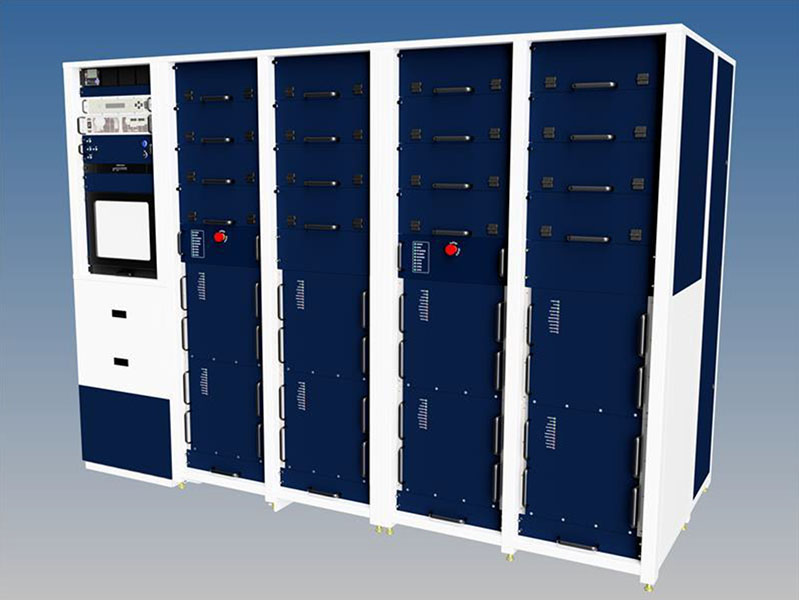

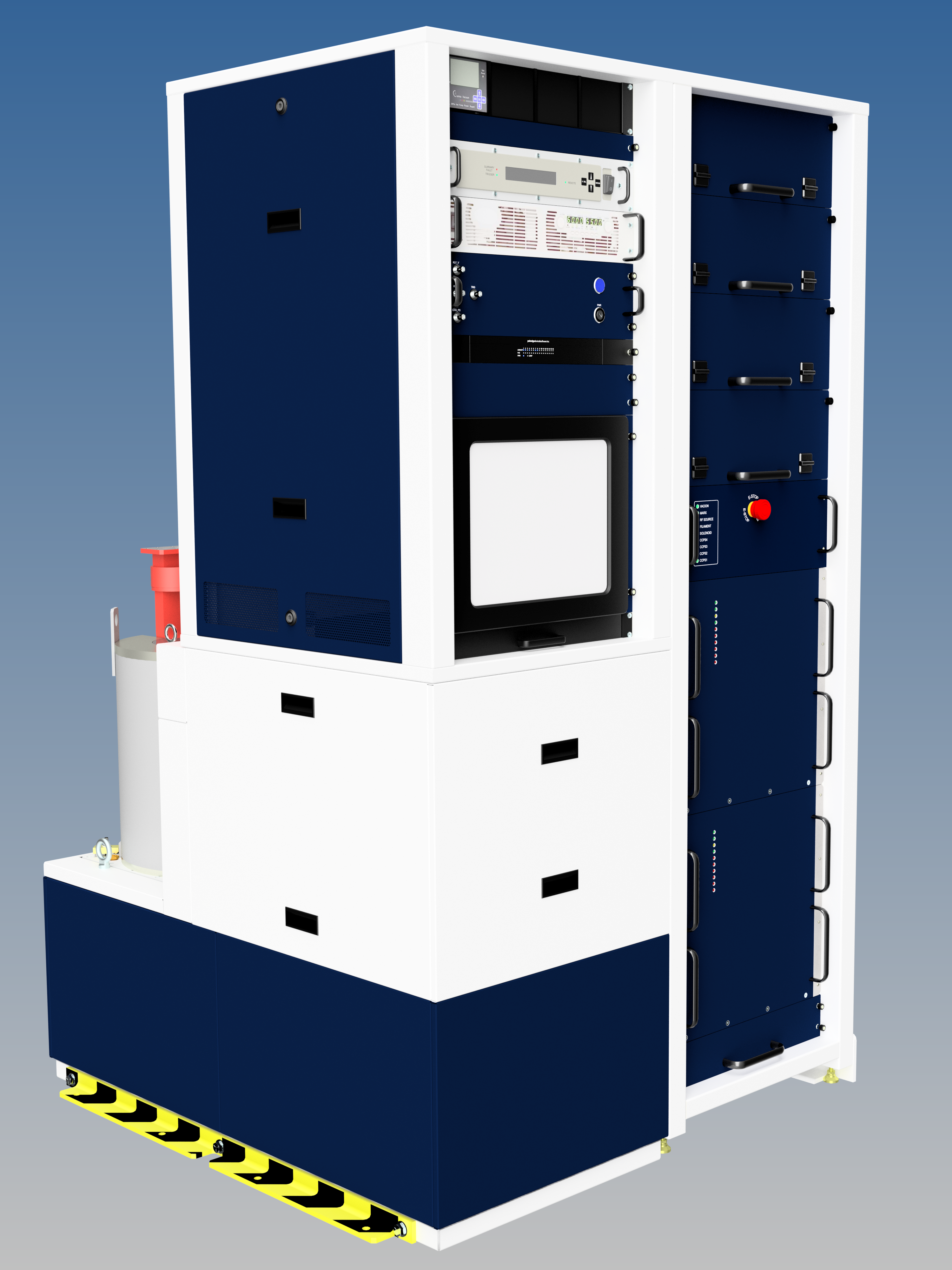

Stangenes Industries is developing a novel klystron driver capable of peak modulator powers of 160MW and average powers of 320kW to drive a variety of high-powered electron-sources. The all-solid-state modulator consists of Marx generators driving parallel primaries of a pulse transformer achieving output voltages of over 500kV. Over 3000 hours of internal lifetime testing on the primary pulsing components have proven the ruggedness of the design.

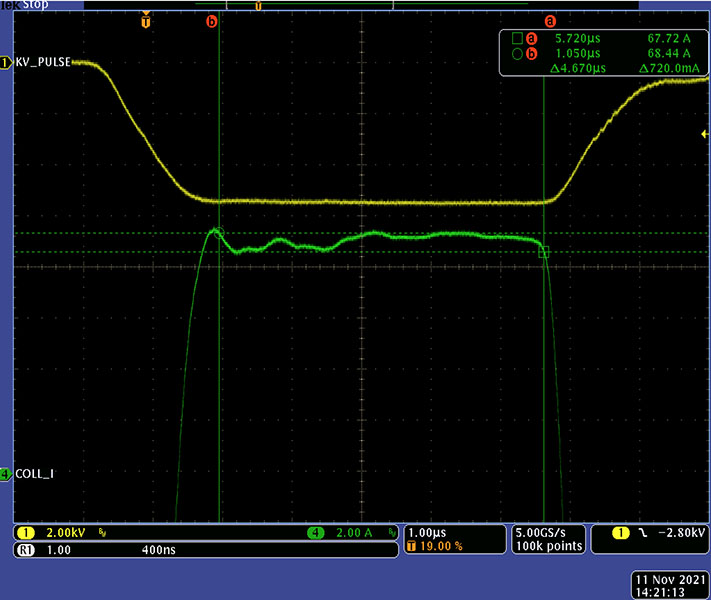

Pulse flat-tops of 0.1%/µs are achievable with real-time klystron feedback, coupled with an optimization algorithm that automatically adjusts pulse parameters. Pulse RMS stabilities of less than 100ppm are necessary in many applications and require careful tuning of the charging elements.

Unit of Measure

Specifications

Brands

 N/A Stangenes

Repetition Rate

 N/A 0 to 1000 Hz

Pulse Flat Voltage

 N/A 0 to 550 kV

Maximal Nominal Pulse Current

 N/A 1000 A

Pulse Length (Flat Top)

 N/A 0 to 20 µs

Peak Modulator Power

 N/A 160 MW

Average Modulator Power Capacity

 N/A 320 kW

Pulse Flatness

 N/A <0.5 %/µs

Peak High Voltage (HV) Pulse to Pulse Amplitude (Root Mean Square (rms))

 N/A 1000 ppm

Pulse Rise Time

 N/A ≤1.2 µs

Pulse Fall Time

 N/A ≤1.2 µs

Pulse to Pulse Timing Jitter

 N/A <20 ns

Pulse Width Jitter

 N/A <20 ns

Inverse Voltage (Backswing)

 N/A <10 kV

Maximum Fault Energy

 N/A 50 J

Maximum Fault Current

 N/A 1000 A

Filament Voltage

 N/A 0 to 50 V

Filament Current

 N/A 0 to 50 A

Filament Current Regulation Standby

 N/A 1 %

Number of Supplies

 N/A Up to 8 Units

Coil Voltage

 N/A 0 to 30 V

Coil Current

 N/A 0 to 25 A

Interlocks

 N/A true
Water/Air Cooling System1 N/A ~76 L/m

Alternating Current (AC) Voltage

 N/A ~400 V

Phase

 N/A 3

Features

Features

 N/A

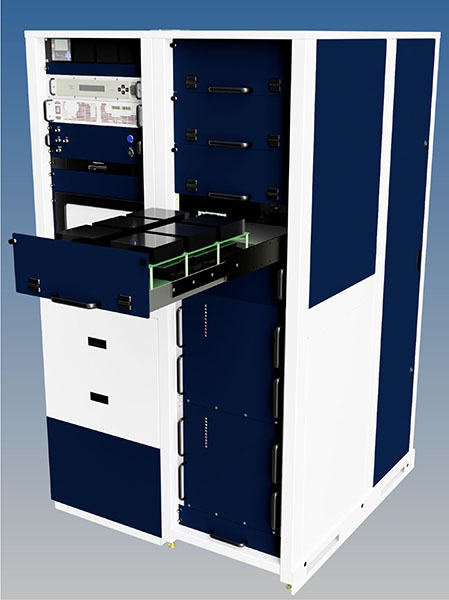

  • Drawer system – the pulser unit or "stick" is meant to be directly replaced
  • MTTR for "stick" replacement < 10min.
  • Serviceability – drawer slide out breaks both water and electrical connections at pressure
  • Dielectric oil in transformer tank
  • Power - system runs off three-phase ~400VAC
  • Logic - several integrated MCUs and FPGAs for logic and triggering
  • Client - ethernet control, diagnostics, arc-handling and fault logging

Additional Information

Additional Information

 N/A

For over 50 years Stangenes Industries has designed a built high quality electromagnetic components allowing for great advancements in science and industry. Stangenes is the logical choice for electron source drivers for pulsed electron guns, magnetrons, gyrotrons, and klystrons. All products manufactured by Stangenes Industries are made in the United States.
  • 1 Very little heat in air
